Frequency converter
FC-302P1K1T5E66H1BGXXXXSXXXXA0BXCXXXXDX

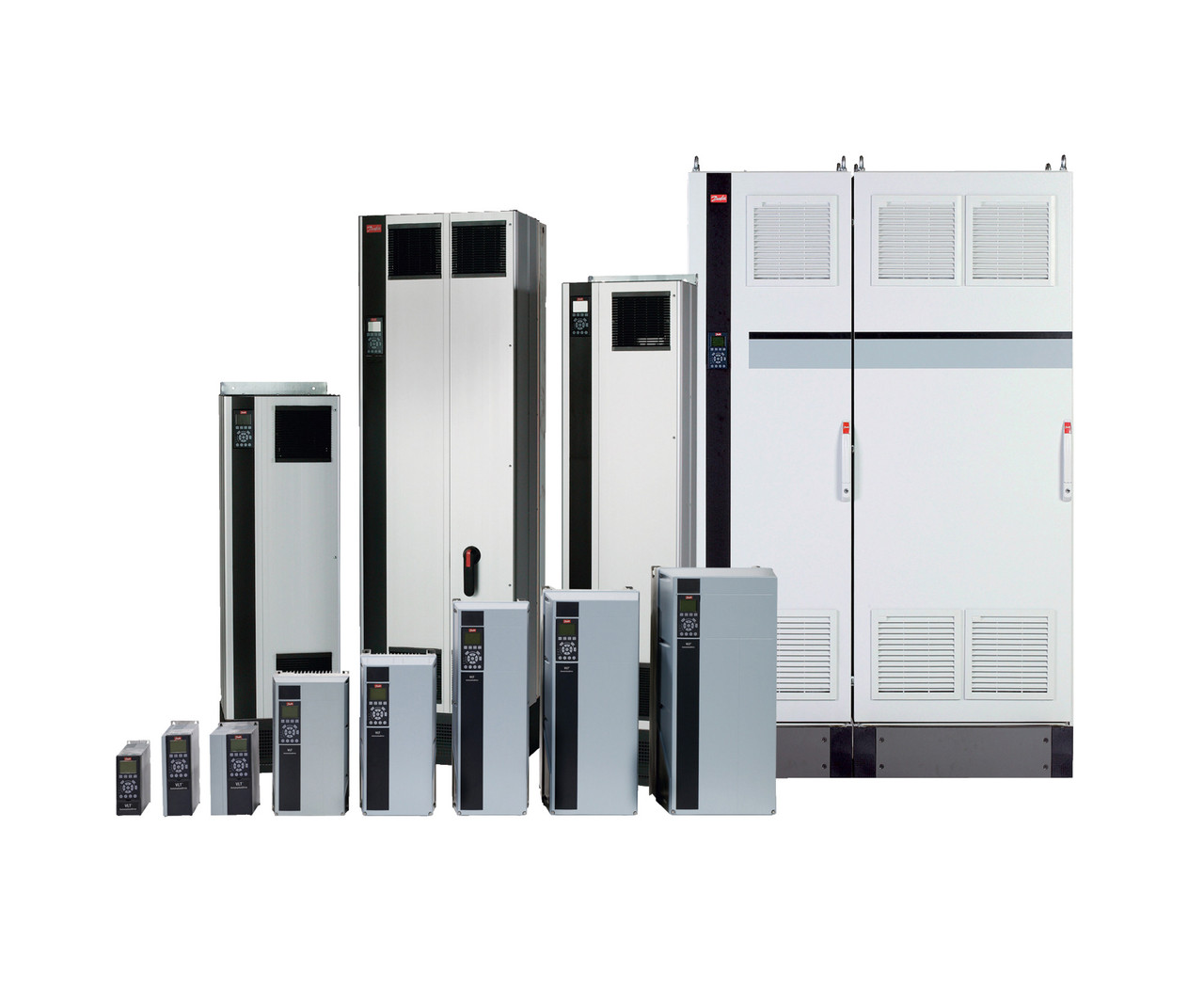

VLT® AutomationDrive FC-302
(P1K1) 1.1 KW / 1.5 HP,
Three phase, 380 - 500 VAC,(E66) IP66 / NEMA 4X
(H1) RFI Class A1/B (C1)
Brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A5
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Other options according to Model code
Model code:
FC-302P1K1T5E66H1BGXXXXSXXXXA0BXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
| Gross weight | 12.226 Kilogram | ||
| Net weight | 11.61 Kilogram | ||
| Volume | 39.798 Liter | ||
| EAN | 5710107184880 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P1K1 | (P1K1) 1.1 KW / 1.5 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E66 | (E66) IP66 / NEMA 4X | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Typecode Part 1 | FC-302P1K1T5E66H1BGX | ||
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 1.1 | 1.1 | |
| Height [mm] | 420,0 | 420,0 | |
| Width w/ no C options [mm] | 242,0 | 242,0 | |
| Depth [mm] | 200,0 | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | 200,0 | |
| kVA | 2.08 | 2.08 | |
| Power Loss HO [W] | 58 | 58 | |
| Power Loss HO [W] | 58 | 58 | |
| Continuous Current (HO) [A] | 3 | 3 | |
| Intermittent Current (HO) [A] | 4.8 | 4.8 | |
| Continuous Current (HO) [A] | 2.7 | 2.7 | |
| Intermittent Current (HO) [A] | 4.32 | 4.32 | |
| Calculated Gross Weight [kg] | 12.226 | ||
| Calculated Net Weight [kg] | 11.61 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P1K1T5E66H1BGX | ||
| Modelcode02 | XXXSXXXXA0BXCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
