Frequency converter
FC-302P4K0T5E55H1BGX1XXSXXXXA0BKCXXXXDX

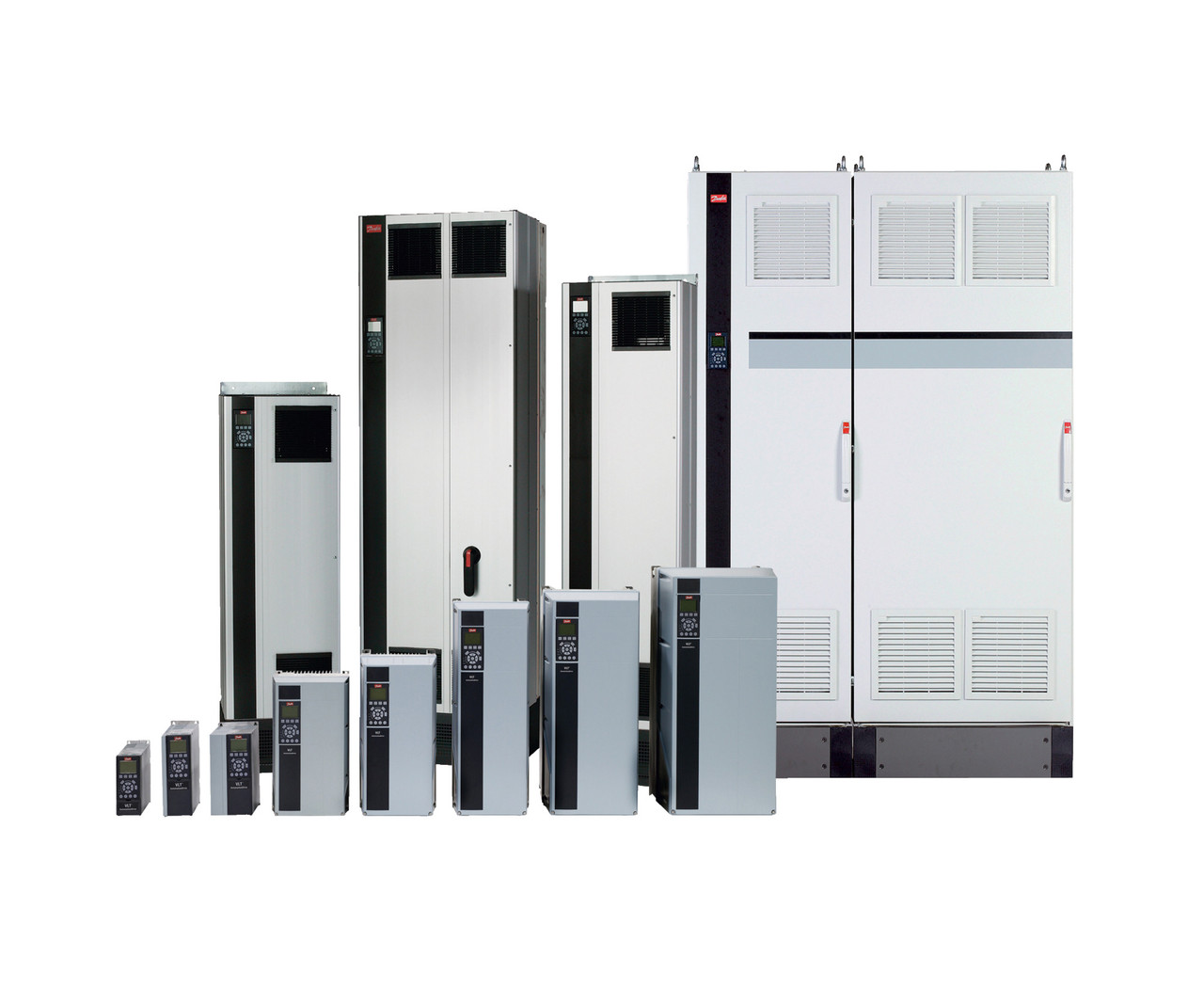

VLT® AutomationDrive FC-302
(P4K0) 4.0 KW / 5.0 HP,
Three phase, 380 - 500 VAC,IP55 / Type 12
(H1) RFI Class A1/B (C1)
Brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
Frame: A5
PROFIBUS DP MCA 101, MCB-101 General purp. I/O
No C1 option, No D option
Other options according to Model code
Model code:
FC-302P4K0T5E55H1BGX1XXSXXXXA0BKCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
| Gross weight | 12.416 Kilogram | ||
| Net weight | 11.8 Kilogram | ||
| Volume | 39.798 Liter | ||
| EAN | 5702427362802 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P4K0 | (P4K0) 4.0 KW / 5.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E55 | IP55 / Type 12 | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Typecode Part 1 | FC-302P4K0T5E55H1BGX | ||
| Typecode Part 2 | 1XXSXXXXA0BKCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 4 | 4 | |
| Height [mm] | 420,0 | 420,0 | |
| Width w/ no C options [mm] | 242,0 | 242,0 | |
| Depth [mm] | 200,0 | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | 200,0 | |
| kVA | 6.93 | 6.93 | |
| Power Loss HO [W] | 124 | 124 | |
| Power Loss HO [W] | 124 | 124 | |
| Continuous Current (HO) [A] | 10 | 10 | |
| Intermittent Current (HO) [A] | 16 | 16 | |
| Continuous Current (HO) [A] | 8.2 | 8.2 | |
| Intermittent Current (HO) [A] | 13.1 | 13.1 | |
| Calculated Gross Weight [kg] | 12.416 | ||
| Calculated Net Weight [kg] | 11.8 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P4K0T5E55H1BGX | ||
| Modelcode02 | 1XXSXXXXA0BKCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
