iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-73A0E20F3+BAPR+BDBA+BEF1+BF20+DAAU
IP20/Open Type Frame: FA06
3~ 380-500 V AC73 A
EMC category: C3 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Fieldbus protocols enabled: PROFINET RT OS7PR
Other protocols enabled: Ethernet port, no protocol
Functional Safety: STO, not upgradable
Other options according to model code
Model code:
IC7-60FA3N05-73A0E20F3+BAPR+BDBA+BEF1+BF20+DAAU

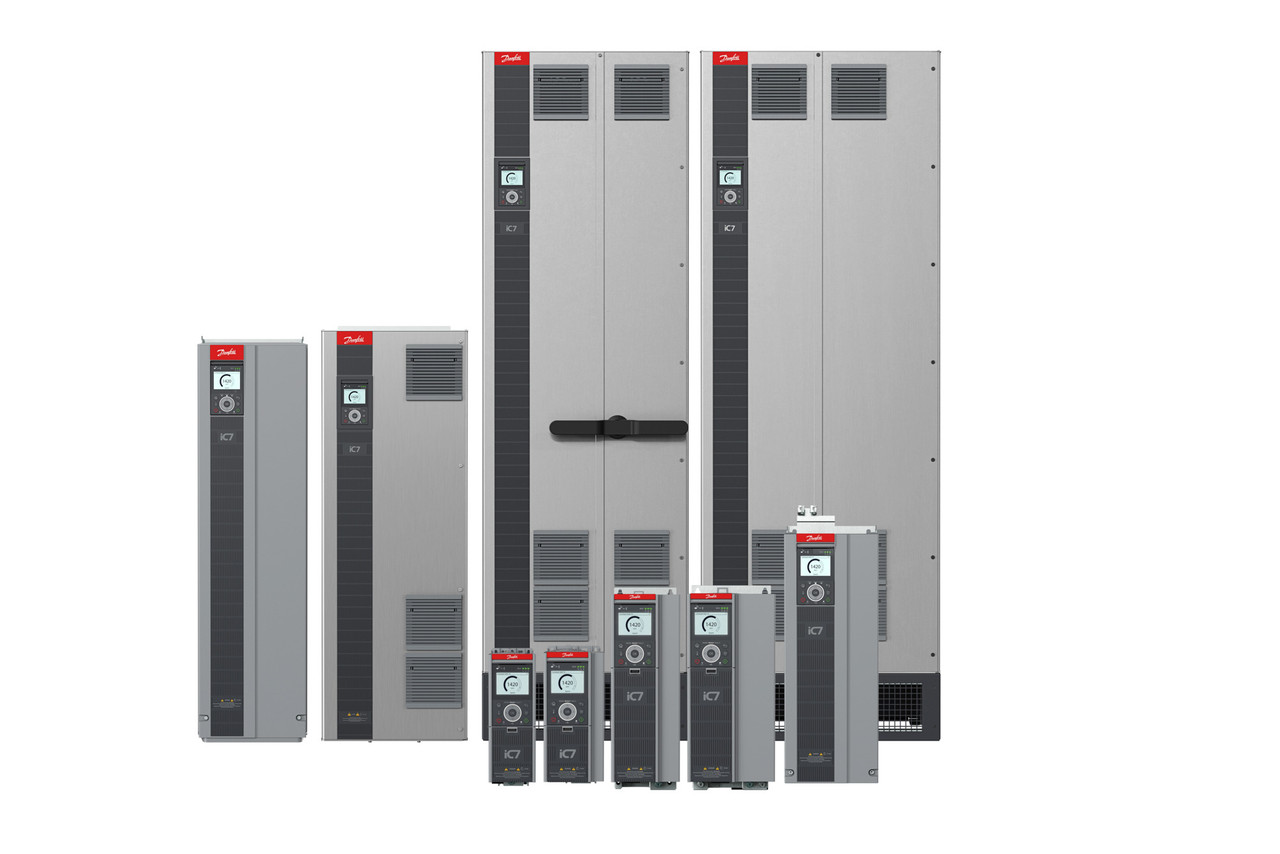

The iC7-Automation frequency converter is dedicated to a wide range ofdemanding automation applications. With precision motor control even inopen loop, the drive offers unique shaft performance and embeddedindustrial IoT security. This compact drive is configurable to match thespecific application needs and system setup. It covers the power range0.37- 710 kW at 380-500 VAC, and is available in protection ratingsIP20/Open Type and higher.
| Gross weight | 31.15 Kilogram | ||
| Net weight | 25.84 Kilogram | ||
| Volume | 91.654 Liter | ||
| EAN | 5715253808574 |
| Product series | +DAAU | iC7-Automation | |
| Product group | IC7-60 | iC7-60 | |
| Product category | FA | Frequency converter,air-cooled | |
| Product type | 3N | 3~ | |
| Mains voltage | 05 | 380-500 V AC | |
| Current rating | -73A0 | 73 A | |
| Power rating | 37K | 37 kW/50 hp | |
| Protection rating | E20 | IP20/Open Type | |
| EMC category | F3 | C3 category | |
| Cable entry and EMC plate | +AAST | Standard plate | |
| Integrated brake chopper | +ACXX | None | |
| Extra environmental protection | +AGXX | None | |
| Humidity protection device | +AHXX | None | |
| Integrated common-mode filter | +AIXX | None | |
| Mains input device | +AJXX | None | |
| DC terminals | +ALXX | None | |
| Touch protection | +AMXX | None | |
| Heat sink access panel | +APXX | None | |
| Communication interface, X1/X2 | +BAPR | PROFINET RT OS7PR | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDBA | 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO | |
| Functional safety | +BEF1 | STO, not upgradable | |
| Control panel | +BF20 | Control Panel 2.8 OPX20 | |
| Interface board | +BISR | MicroSD card reader and RTC | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBXX | None, not upgradable | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option Slot E | +CEX0 | None | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Customer-specific label | +EJXX | None | |
| Language package | +EL01 | Global | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | FA06 | FA06 | |
| Modelcode01 | IC7-60FA3N05-73A0E20F3 | ||
| Modelcode03 | +BAPR+BDBA | ||
| Modelcode04 | +BEF1+BF20 | ||
| Modelcode05 | +DAAU | ||
| Input Voltage | 3x380-500V | 3x380-500V | |
| Input frequency | 50/60Hz | 50/60Hz | |
| Input current LO (1/10 min) | 70/61A | 70/61A | |
| Input current HO (1/10 min) | 70/61A | 70/61A | |
| Input curent HO2 (1/5 min) | 57/50A | 57/50A | |
| Short circuit current rating | 100kA | 100kA | |
| Output frequency | 0-590Hz | 0-590Hz | |
| Typical motor power PL (110%) | 37KW(400V)/50HP(460V) | 37KW(400V)/50HP(460V) | |
| Continous current IL (1/10min) | 73/66A | 73/66A | |
| Overload current IL (1/10min) | 80/73A | 80/73A | |
| Typical motor power PH (150%) | 37KW(400V)/50HP(460V) | 37KW(400V)/50HP(460V) | |
| Continous current IH (1/10min) | 73/66A | 73/66A | |
| Overload current IH (1/10min) | 110/99A | 110/99A | |
| Typical motor power PH2 (150%) | 30KW(400V)/40HP(460V) | 30KW(400V)/40HP(460V) | |
| Continous current IH (1/5min) | 61/55A | 61/55A | |
| Overload current IH (1/5min) | 92/83A | 92/83A | |
| Ambient temp LO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Ambient temp HO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Ambient temp HO2 (1/5 min) | 45°C/113°F | 45°C/113°F | |
| Maximum Power Loss LO [W] | 817 | 817 | |
| Efficiency class-Relative loss | IE2 - 1.52% | IE2 - 1.52% | |
| Main unit Width | 200 MM / 7.9 IN | 200 MM / 7.9 IN | |
| Main unit Height | 555 MM / 21.9 IN | 555 MM / 21.9 IN | |
| Main unit Depth | 294 MM / 11.6 IN | 294 MM / 11.6 IN | |
| Calculated Net Weight [kg] | 25.84 | ||
| Calculated Gross Weight [kg] | 31.15 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Ambient temp. normal overload | 45°C/113°F | 45°C/113°F | |
| Enclosure rating | IP20 / OPEN TYPE | IP20 / OPEN TYPE | |
| Help Counter | 1 | ||
| Input current in Normal Overlo | 70/61A | 70/61A | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Typecode Part 1 | 7FC-AUFA3N05-73A0E20F3 | ||
| Typecode Part 2 | -000132227 | ||
| Vendor | ERR01 | Cannot Determine Vendor |
