| Accuracy | Standard 0.1% Platinum 0.075% |
|---|---|
| Process temperature | -20°C...130°C (-4°F...266°F) |
| Pressure measuring range | 100 mbar...40 bar (1.5psi...600psi) |
| Process pressure / max. overpressure limit | 60 bar (900 psi) |
| Main wetted parts | Ceraphire Sealing Alloy C276 316L |
| Max. measurement distance | 400 m (1312 ft) H2O |
| Material process membrane | Ceramic |
| Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute |
| Measuring principle | Absolute and gauge pressure |

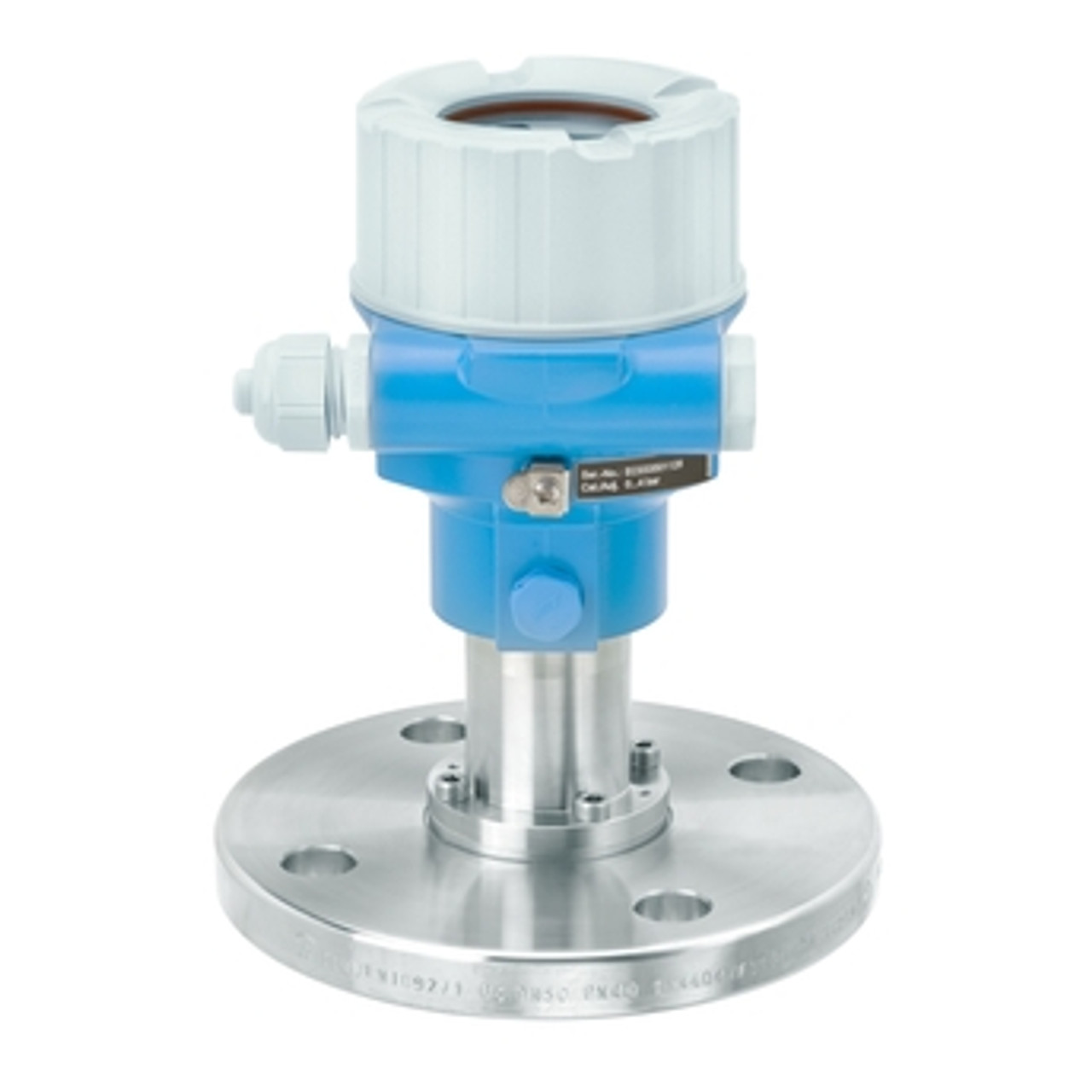

| Characteristic | Smart and reliable pressure transmitter with capacitive measuring cell and ceramic process isolating diaphragm Ceraphire) |
| Supply voltage | 4...20 mA HART 11,5...45V DC (Non Ex): Ex ia: 11,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
| Reference Accuracy | Standard 0.1% Platinum 0.075% |
| Long term stability | 0.2% of URL/ year 0.4% of URL/ 5 years 0.5% of URL/ 10 years |
| Process temperature | -40°C...+130°C (-40°F...+266°F +150°C for 1h (+302°F for 1h) |
| Ambient temperature | -40°C...+85°C (-40°F...+185°F) |
| Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute |
| Smallest calibratable span | 10 mbar (0.15 psi) |
| Vacuum resistance | 0 mbar abs. |
| Max. Turn down | 20:1 |
| Max. overpressure limit | 60 bar (900 psi) |
| Process connection | Thread: G1/2...G2, R1/2, MNPT1/2 Flange: DN25...DN80, ASME 1"...4", JIS 10K |
| Process connection hygienic | Tri-Clamp DIN11851 DIN11864-1 NEUMO Varivent N SMS DRD |
| Material process membrane | Ceramic |
| Material gasket | Viton, EPDM, NBR, Kalrez |
| Fill fluid | None, dry measuring cell |
| Material housing | Die-cast aluminum, AISI 316L |
| Communication | 4...20 mA 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus IO-Link |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex |
| Safety approvals | SIL |
| Design approvals | EN10204-3.1 NACE MR0175 |
| Hygienic approvals | CoC ASME-BPE 3A, EHEDG |
| Marine approvals | GL/ ABS/ LR/ BV/ DNV |
| Drinking water approvals | NSF |
| Successor | PMC51B |
| Measuring principle | Absolute and gauge pressure |
| Characteristic / Application | Smart and reliable pressure transmitter, with capacitive measuring cell and ceramic process isolating diaphragm (Ceraphire) |
| Supply / Communication | 4 ..20 mA HART: 11,5...45V DC Ex ia: 11,5...30V DC PROFIBUS PA FOUNDATION Fieldbus |
| Accuracy | Standard 0.1% Platinum 0.075% |
| Long term stability | < 0,1% of URL/ year < 0,25% of URL/ 5 years < 0,4% of URL/ 10 years |
| Ambient temperature | -40°C...85°C (-40°F...185°F) |
| Process temperature | -20°C...130°C (-4°F...266°F) |
| Process pressure / max. overpressure limit | 60 bar (900 psi) |
| Pressure measuring range | 100 mbar...40 bar (1.5psi...600psi) |
| Main wetted parts | Ceraphire Sealing Alloy C276 316L |
| Process connection | Threads Flanges (DIN, ASME, JIS) |
| Max. measurement distance | 400 m (1312 ft) H2O |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus IO-Link |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI |
| Safety approvals | SIL |
| Design approvals | EN 10204-3.1 NACE MR0175, MR0103 |
| Hygienic approvals | 3A, EHEDG CoC ASME-BPE |
| Marine approval | GL/ ABS/ LR/ BV/ DNV |
| Drinking water approvals | NSF |
| Options | Local display |
| Successor | PMC51B |
| Application limits | Measuring cell: ceramics If pressurized, possibly use differential pressure measurement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure |
