Frequency converter
FC-302P5K5T5E20H2BXXXXXSXXXXA0BXCXXXXD0

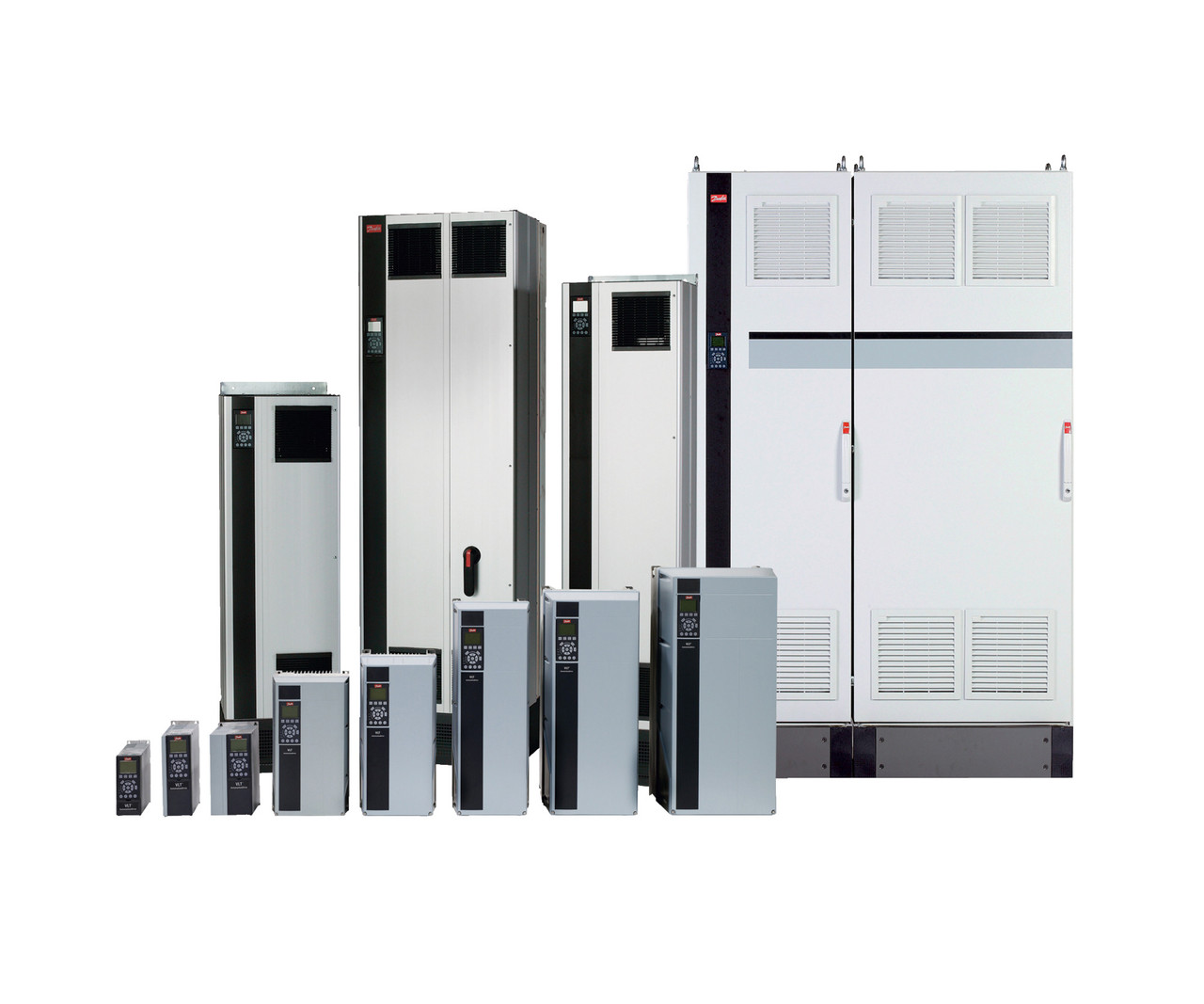

VLT® AutomationDrive FC-302
(P5K5) 5.5 KW / 7.5 HP,
Three phase, 380 - 500 VAC,(E20) IP20 / Chassis
RFI Filter
Brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A3
PROFIBUS DP MCA 101, No B Option
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Model code:
FC-302P5K5T5E20H2BXXXXXSXXXXA0BXCXXXXD0
The VLT® AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
| Gross weight | 7.126 Kilogram | ||
| Net weight | 6.12 Kilogram | ||
| Volume | 27.246 Liter | ||
| EAN | 5702427946880 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P5K5 | (P5K5) 5.5 KW / 7.5 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | A3 | A3 | |
| Typecode Part 1 | FC-302P5K5T5E20H2BXX | ||
| Typecode Part 2 | XXXSXXXXA0BXCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 5.5 | 5.5 | |
| Height [mm] | 268,0 | 268,0 | |
| Width w/ no C options [mm] | 130,0 | 130,0 | |
| Width w/ two C options [mm] | 190,0 | 190,0 | |
| Depth [mm] | 205,0 | 205,0 | |
| Depth with Option A/B [mm] | 220,0 | 220,0 | |
| kVA | 9.01 | 9.01 | |
| Power Loss HO [W] | 187 | 187 | |
| Power Loss HO [W] | 187 | 187 | |
| Continuous Current (HO) [A] | 13 | 13 | |
| Intermittent Current (HO) [A] | 20.8 | 20.8 | |
| Continuous Current (HO) [A] | 11 | 11 | |
| Intermittent Current (HO) [A] | 17.6 | 17.6 | |
| Calculated Gross Weight [kg] | 7.126 | ||
| Calculated Net Weight [kg] | 6.12 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P5K5T5E20H2BXX | ||
| Modelcode02 | XXXSXXXXA0BXCXXXXD0 | ||
| Recommended Plant | ERR01 | ERR01 |
