Frequency converter
FC-302P45KT5E55H1XNC1XXSXXXXAXBXCXXXXDX

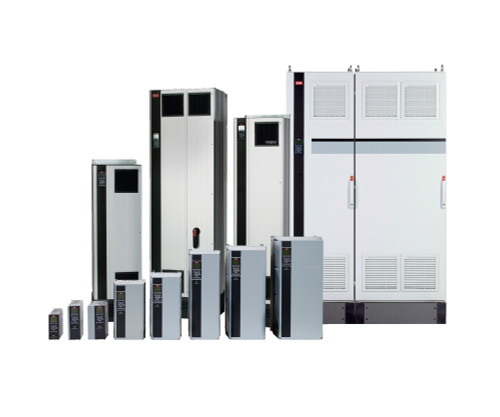

VLT® AutomationDrive FC-302
(P45K) 45 KW / 60 HP,
Three phase, 380 - 500 VAC,IP55 / Type 12
(H1) RFI Class A1/B (C1)
No brake chopper
Numerical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: C1
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Model code:
FC-302P45KT5E55H1XNC1XXSXXXXAXBXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
| Gross weight | 44.79 Kilogram | ||
| Net weight | 41.79 Kilogram | ||
| Volume | 176.054 Liter | ||
| EAN | 5702427390379 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P45K | (P45K) 45 KW / 60 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E55 | IP55 / Type 12 | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | N | Numerical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | C1 | C1 | |
| Typecode Part 1 | FC-302P45KT5E55H1XNC | ||
| Typecode Part 2 | 1XXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 45 | 45 | |
| Power 110% (NO) [KW] | 55 | 55 | |
| Height [mm] | 685,0 | 685,0 | |
| Width w/ no C options [mm] | 308,0 | 308,0 | |
| Depth [mm] | 311,0 | 311,0 | |
| Depth with Option A/B [mm] | 311,0 | 311,0 | |
| kVA | 62.4 | 62.4 | |
| Power Loss NO [W] | 1083 | 1083 | |
| Power Loss NO [W] | 1083 | 1083 | |
| Power Loss HO [W] | 891 | 891 | |
| Power Loss HO [W] | 891 | 891 | |
| Continuous Current (NO) [A] | 106 | 106 | |
| Intermittent Current (NO) [A] | 117 | 117 | |
| Continuous Current (NO) [A] | 105 | 105 | |
| Intermittent Current (NO) [A] | 116 | 116 | |
| Continuous Current (HO) [A] | 90 | 90 | |
| Intermittent Current (HO) [A] | 135 | 135 | |
| Continuous Current (HO) [A] | 80 | 80 | |
| Intermittent Current (HO) [A] | 120 | 120 | |
| Calculated Gross Weight [kg] | 44.79 | ||
| Calculated Net Weight [kg] | 41.79 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P45KT5E55H1XNC | ||
| Modelcode02 | 1XXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
